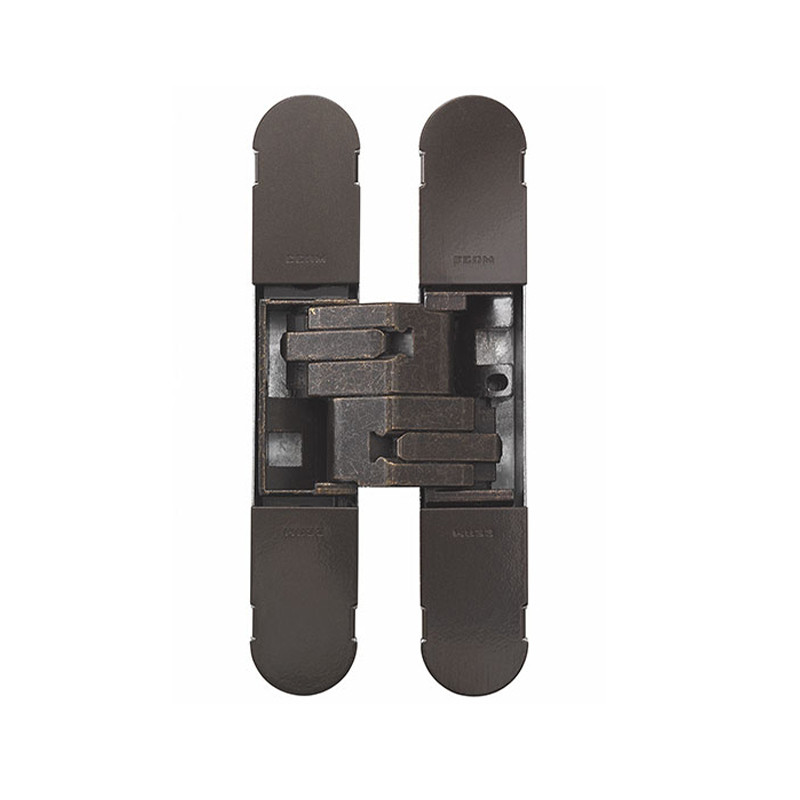

Carlisle Brass Eurospec Ceam 3D Concealed Hinge CI001230
FROM £40.96 Each Ex VAT
A concealed heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws.
One pack of self-adhesive intumescent hinge liners suitable for FD30 applications. Successfully included within BS EN 1634-1:2014.
Fitting Jig: The drilling template, made of 5 mm thick aluminium plates, is composed by a central body and a double insert (sold separately from the body), it allows the implementation of the slots for all the invisible hinges. The strength of the materials guarantees precise slots executions with a manual pantograph (16 mm diam. cutter and27 mm external ring provided for all manual pantographs). For each hinge model, two types of insertions, easily replaceable, are used: one (A) to execute: the stroke slot and the other (B) for the internal depth slot.
Features
- Total length 130mm
- Reversable
- Depth only 21mm.
- Load capacity 2 hinges: 50kg
- Load capacity 3 hinges: 70kg
- Load capacity 3 hinges asymmetrical: 74 kg
- Load capacity 4 hinges: 80kg
- Suitable for doors from 35mm to 45mm thickness.
- Comes with a 10-year mechanical guarantee.
- Suitable for interior domestic use.
- Please note all Ceam hinges are supplied in singles and not supplied with screws.
- Made in Italy
