EN 1154 Product Classifications

Both Fig 1 & Fig 66 applications

3
8
6
3
1
1
3

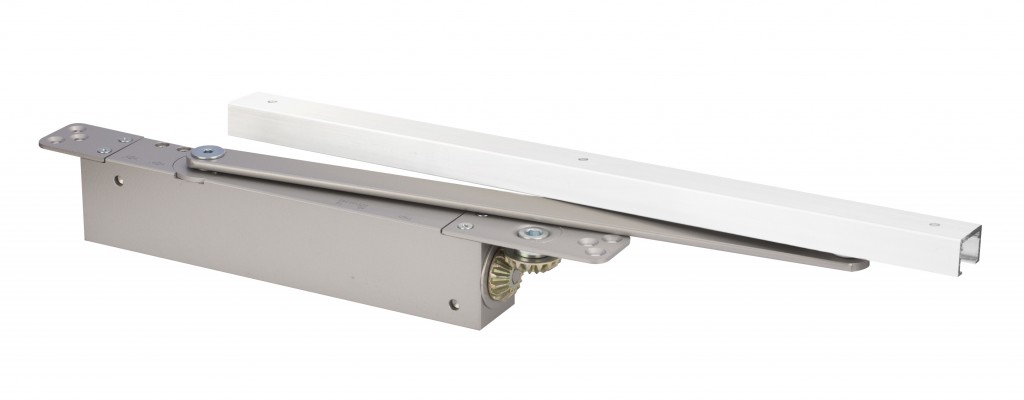

A precision and quality manufactured door closer which is integrated into the door leaf and frame allowing the closer body and slide channel to be installed discretely out of sight which reduces the risk of abuse and is more aesthetically pleasing. This concealed door closer incorporates a cushion stop as standard to prevent the door from clashing with surrounding walls and panels. Suitable for use on 30 and 60 minute fire doors of 54mm thickness and above. The cam action mechanism of this unit is designed to provide a low opening force making it especially suitable for the young and elderly.

Features

  • Conforms to European standard EN 1154
  • EN 3-6 spring adjustable power size
  • UKCA marked, CE marked & Certifire CF 5293
  • EN 1634-1 fire tested to 60 minutes timber door
  • Maximum door width 1400mm / weight 120Kg
  • Maximum door closing angle 120Ā°
  • Capable of assisting / meeting the requirements of BS8300 / Part M ā€“ Minimum door width 950mm

Finishes

  • SNP

  • AMSNP

  • PCP

  • SE

  • PB

  • AMPCB

  • AMPCW

Standards

Heavy Duty Adjustable Power Concealed Cam Action Door Closer
Satin Nickel Plate
Product code: FS1408-12
£239.90 Ex VAT
Each
VAT
Heavy Duty Adjustable Power Concealed Cam Action Door Closer
Antimicrobial
Self-Sanitising Antimicrobial Satin Nickel Plate
Product code: AMFS1408-12A
£220.60 Ex VAT
Each
VAT
Heavy Duty Adjustable Power Concealed Cam Action Door Closer
Polished Chrome Plate
Product code: FS1409
£256.48 Ex VAT
Each
VAT
Heavy Duty Adjustable Power Concealed Cam Action Door Closer
Silver
Product code: FS1411
£199.20 Ex VAT
Each
VAT
Heavy Duty Adjustable Power Concealed Cam Action Door Closer
Polished Brass
Product code: FS1408-6
£259.90 Ex VAT
Each
VAT
Heavy Duty Adjustable Power Concealed Cam Action Door Closer
Antimicrobial
Self-Sanitising Antimicrobial Matt Black
Product code: AMFS1408-14A
£220.60 Ex VAT
Each
VAT
Heavy Duty Adjustable Power Concealed Cam Action Door Closer
Antimicrobial
Self-Sanitising Antimicrobial Matt White
Product code: AMFS1408-15A
£220.60 Ex VAT
Each
VAT
Suitable for FD30 (must be used when fitted to fire doors)
Intumescent Pack for Heavy Duty Adjustable Power Concealed Cam Action Door Closer
£36.80 Ex VAT
Each
VAT
Suitable for FD60 (must be used when fitted to fire doors)
Intumescent Pack for Heavy Duty Adjustable Power Concealed Cam Action Door Closer
£36.80 Ex VAT
Each
VAT
£29.53 Ex VAT
Each
VAT
