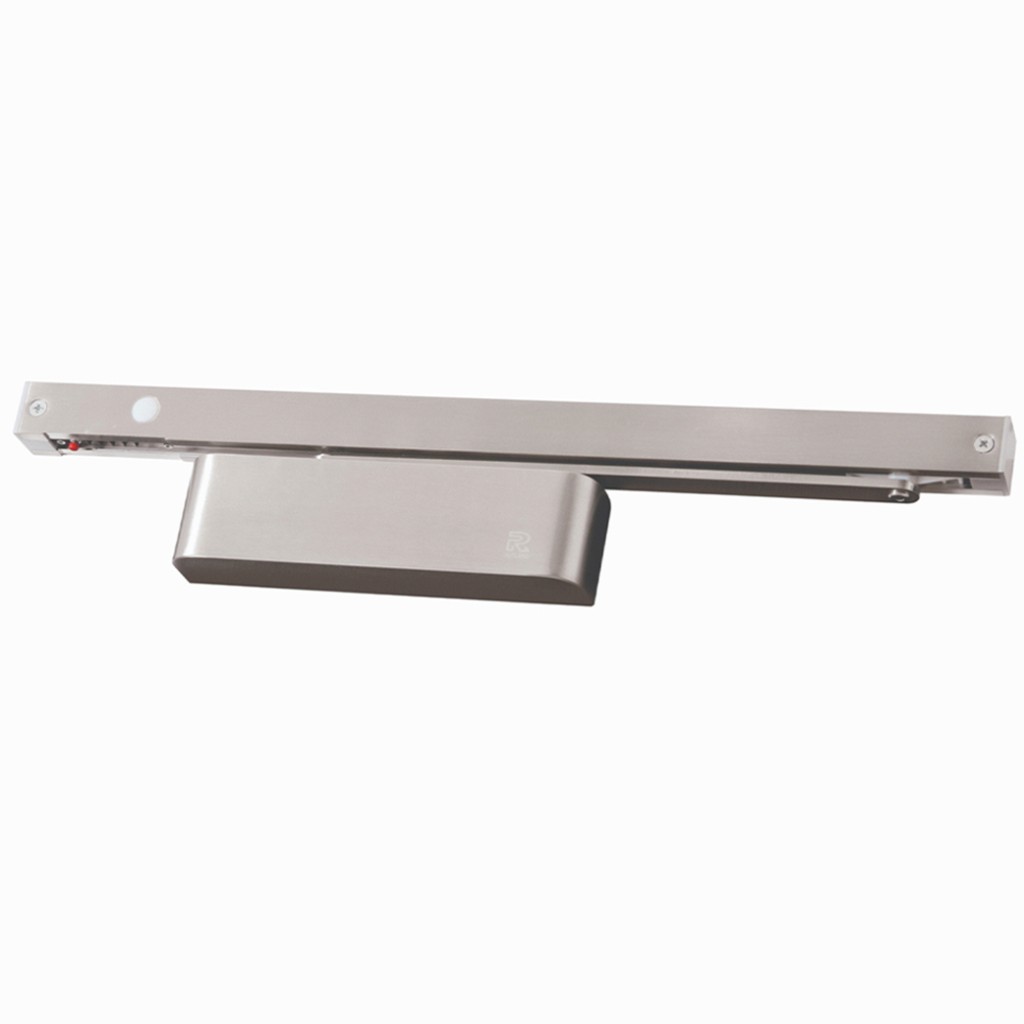

The Rutland TS.FIRETRAK.114 Electromagnetic Slide Arm Closer is a surface mounted Electromagnetic hold open slide arm with cam action door closer designed for fire and smoke compartmentation doors. Fire and smoke doors will operate in a controlled close with the TS.FIRETRAK.114 when the fire or smoke alarm is activated.

Rutland PSU.1224.9 – Power Supply Unit is a regulated PSU with control module. This connects electromagnetic door closers to the fire alarm such as the FIRETRAK114/115 and the Responder.  The control module offers the options to switch in a file-safe or file-select manner using either volt-free or a 24DV trigger.

Rutland PSU is recommended to be suitable for 4 E-mag devices (Responder 24 and FireTrak), however it is recommended that the fitter consults with the cable voltage drop table due to the fact that cable sizing and length can affect voltage drop. It is the responsibility of the fitter to ensure the correct cable thickness is used for the situation in hand.

Please note: only available for online purchases.

TS.FIRETRAK.114 features:

• Tested to EN 1155 (electrical compatibility), BS EN 1154 (controlled door closing devices) & BS EN1634 (dual orientation fire tests)
• Variable power size EN2-4, for doors up to 80kg / 1100mm wide
• Assists BS8300 for DocM contracts - helping to assist door sets with ease of opening
• CE marked
• Universal application - can be fitted in Standard, Parallel arm or Transom fitting position
• 5 year guarantee
• Rut Lock
• 24V

Power supply unit features:

• Switch mode technology which converts power more efficiently from mains to 24 volts
• Mild steel construction
• White powder coated
• Tamper protection
• One PSU can take up to 10 Responders or Firetraks
