EN 1154 Product Classifications
3
8
4
1
1
1
3

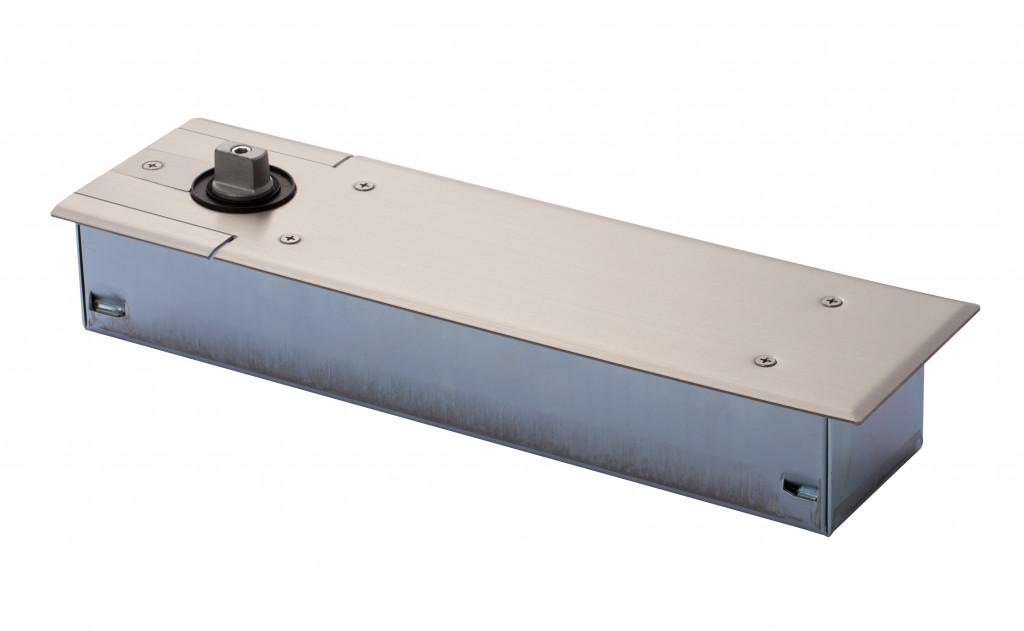

Satin Stainless Steel Universal Adjustable Power Single & Double Action Floor Springs
FROM £167.10 Each Ex VAT
VAT
Suitable for heavy duty installations such as public buildings, offices, schools and hospitals, etc. Adjustable power strength (EN 1-4 for max door weight up to 150kg) manufactured using premium specification components to ensure long life, low maintenance and reliability. Offered with a high list of features as standard together with a comprehensive option list. Top cover plate supplied as standard.
Features
- Conforms to European standard EN 1154
- Adjustable power size EN1-4
- Maximum door weight of 150Kg
- Maximum door width of 1100mm
- Maximum door closing angle 170°
- UKCA marked & CE marked
- Not UKCA or CE approved with hold open options
- EN 1634-1 fire tested to 60 minutes timber door
- Optional mechanical hold-open at 90° variant available (not for use on fire doors)*
- Supplied with cover plate as standard
- Standard spindle supplied with unit (Provides approx 8mm clearance from floor)
- Fire door intumescent strap set pack must be used on fire rated doors
- 5 year guarantee
Standards
Satin Stainless Steel Universal Adjustable Power Single & Double Action Floor Springs
Satin Stainless Steel
Product code: FS1601-1
£167.10 Ex VAT
Each
VAT
Satin Stainless Steel Universal Adjustable Power Single & Double Action Floor Springs
Satin Stainless Steel
Product code: FS1605-1
£167.10 Ex VAT
Each
VAT
Floor spring spindle only
£15.90 Ex VAT
Each
VAT
Floor spring spindle only
£15.90 Ex VAT
Each
VAT
Floor spring spindle only
£15.90 Ex VAT
Each
VAT
Floor spring spindle only
£17.70 Ex VAT
Each
VAT
Floor spring spindle only
£17.70 Ex VAT
Each
VAT
Floor spring spindle only
£19.49 Ex VAT
Each
VAT
Hollow floor mounting cradle box
£55.10 Ex VAT
Each
VAT
